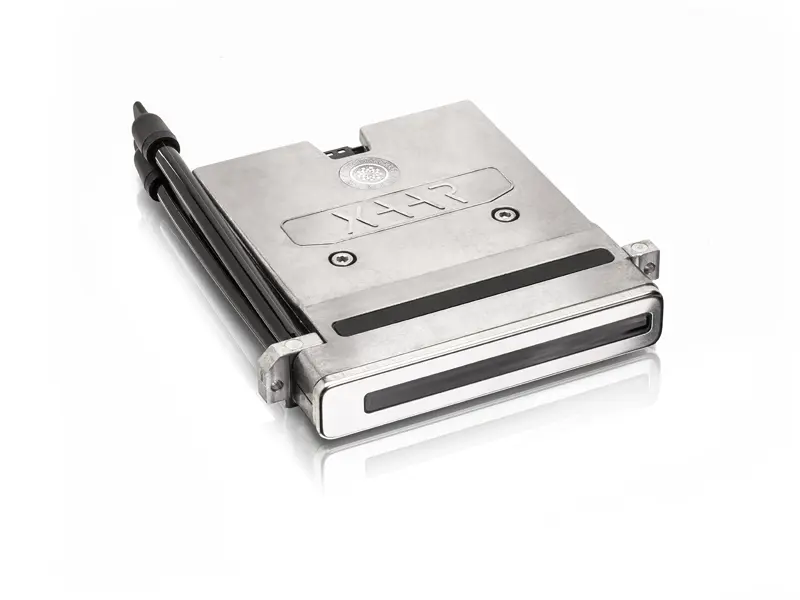

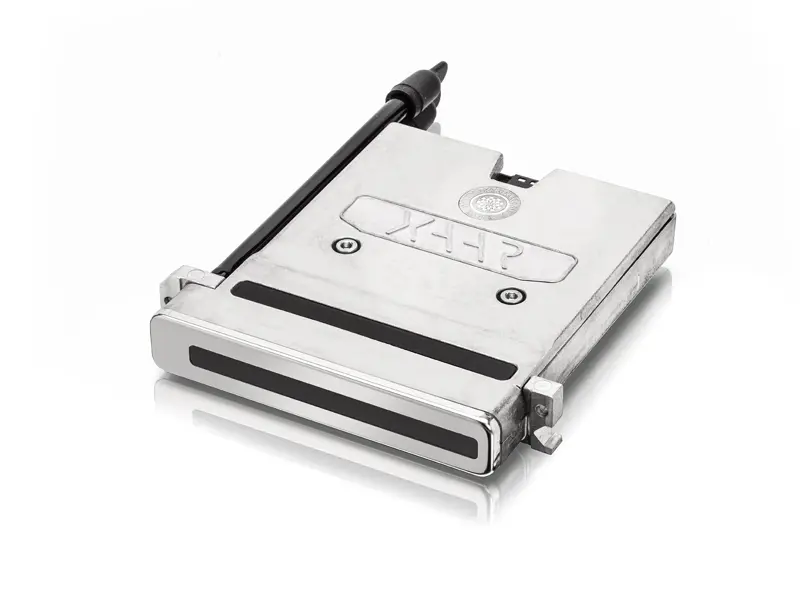

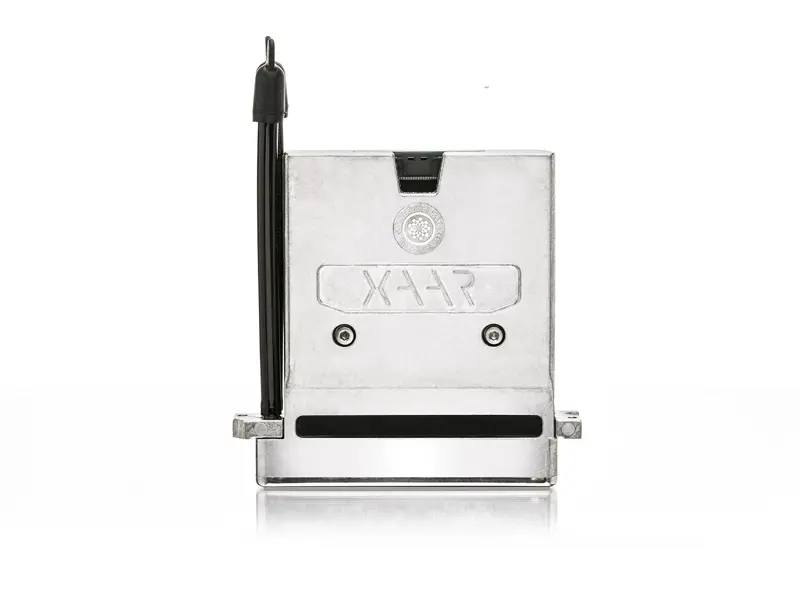

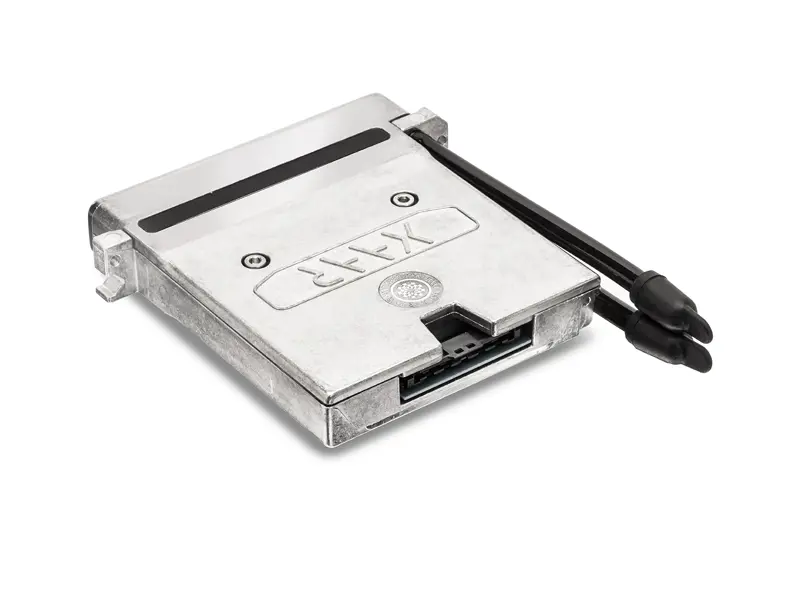

Xaar 502 S

Gain competitive advantage

With industrial reliability, printing at up to 36 KHz

Exceptional print quality with PrecisionPlus Technology

Widest range of fluids now including UV

Flexible & easy integration

Ultra High Viscosity

Viscosities of up to 60cP can be jetted, for printing an increased colour gamut, high opacity and special effects or jetting a higher molecular weight materials

Print uniformity & quality

The enhanced actuator gives exception uniform drop formation delivering even colour density across the swathe combined with PrecisionPlus for unprecedented drop placement

500 nozzles in 70mm width

Wide 70mm print swathe for high productivity and less printhead stitching. Native resolution of 180 nozzles per inch providing flexibility for single or multi-pass print

Multiple print orientations

Prints reliably in vertical or horizontal modes, or dynamically on a robot arm

TF Technology recirculation

Xaar’s TF Technology ensures instant prime and startup as well as reliability, ease of use and excellent print quality

Flexible drop sizes

XaarDot provides different drop sizes from greyscale technology to optimise coverage and print quality

Ultra High Viscosity

Viscosities of up to 60cP can be jetted, for printing an increased colour gamut, high opacity and special effects or jetting a higher molecular weight materials

Print uniformity & quality

The enhanced actuator gives exception uniform drop formation delivering even colour density across the swathe combined with PrecisionPlus for unprecedented drop placement

500 nozzles in 70mm width

Wide 70mm print swathe for high productivity and less printhead stitching. Native resolution of 180 nozzles per inch providing flexibility for single or multi-pass print

Flexible drop sizes

XaarDot provides different drop sizes from greyscale technology to optimise coverage and print quality

Ultra High Viscosity

Viscosities of up to 60cP can be jetted, for printing an increased colour gamut, high opacity and special effects or jetting a higher molecular weight materials

Print uniformity & quality

The enhanced actuator gives exception uniform drop formation delivering even colour density across the swathe combined with PrecisionPlus for unprecedented drop placement

2D data matrix coding
Brand graphics and logos
Expiry date, traceability and batch codes
Primary and secondary packaging, outer case bar-coding
QR codes

Other Applications:
This printhead family can also be used to print fluids used in the Advanced Manufacturing and 3D market sectors. The piezo inkjet technology used in these printheads is capable of printing fluids with a range of viscosity, reactivity and conductivity. Xaar can support you in choosing the right printhead for the fluid type and for the application vs. the performance specification and price.

Physical attributes	Xaar 502 GS15 S180	Xaar 502 GS15 S360
Active nozzles	500	500
Print swathe width (mm)	70.5	70.5
Number of rows	1	1
Nozzle pitch (µm)	141.1	141.1
Nozzle density (nozzles per inch)	180	180
Nozzle stagger (µm)	47	23.5
Nozzle guard	WFG	WFG
Printhead weight (dry) (g)	208	208
Ink type	Solvent	Solvent
Drop volume* (pL)	15 to 70	15 to 40
Drop velocity* (m/s)	5	5
Number of grey levels*	6	4
Typical firing frequency* (kHz)	7	9.5
Dimensions (WxDxH) (mm)	104 x 17 x 113	104 x 17 x 113

* Dependent on ink used and system integration

2D data matrix coding
Brand graphics and logos
Expiry date, traceability and batch codes
Primary and secondary packaging, outer case bar-coding
QR codes

Physical attributes	Xaar 502 GS15 S180	Xaar 502 GS15 S360
Active nozzles	500	500
Print swathe width (mm)	70.5	70.5
Number of rows	1	1
Nozzle pitch (µm)	141.1	141.1
Nozzle density (nozzles per inch)	180	180
Nozzle stagger (µm)	47	23.5
Nozzle guard	WFG	WFG
Printhead weight (dry) (g)	208	208
Ink type	Solvent	Solvent
Drop volume* (pL)	15 to 70	15 to 40
Drop velocity* (m/s)	5	5
Number of grey levels*	6	4
Typical firing frequency* (kHz)	7	9.5
Dimensions (WxDxH) (mm)	104 x 17 x 113	104 x 17 x 113
