The Xaar Nitrox is used across a wide range of industrial inkjet applications, including additive manufacturing, ceramic tiles, décor, functional fluid printing, glass, graphics, labelling, laminates, packaging, product printing and PCB printing. The Xaar Nitrox has the widest application window and handles the broadest range of fluids, making it ideal for production environments where manufacturers need speed, reliability, fluid flexibility and consistent print or deposition performance.

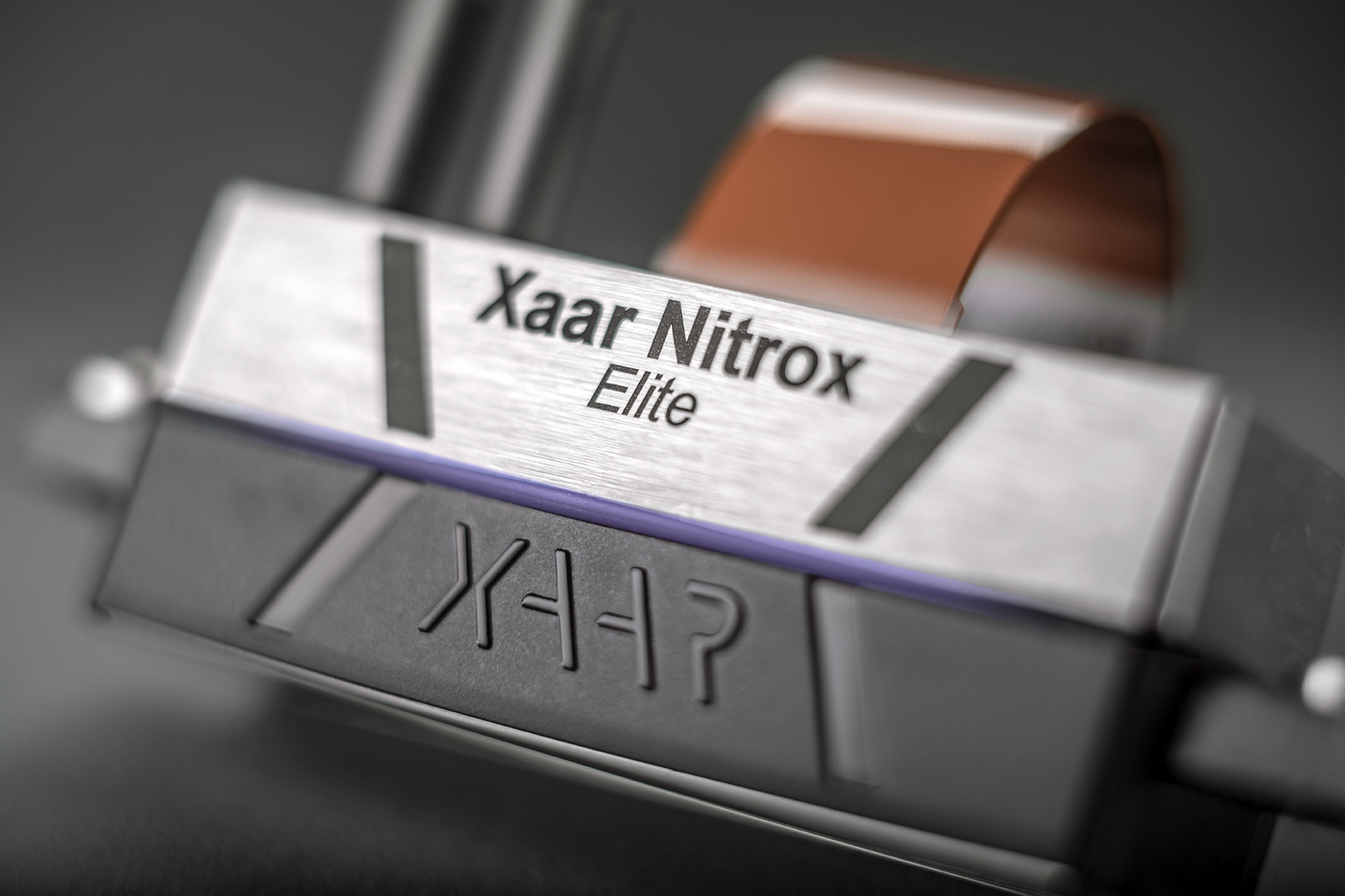

Xaar Nitrox
Print fast. Print perfect. Print almost anything.
Take industrial inkjet further with a printhead platform built for speed, quality and fluid flexibility. Xaar Nitrox combines high-speed performance, exceptional print uniformity and the ability to print a wide range of industrial fluids, helping OEMs and manufacturers deliver more applications with greater confidence.
Applications
High-performance industrial inkjet for demanding applications
Designed for manufacturers that need speed, quality and broader fluid capability
From labels, packaging, graphics and product printing to ceramics, glass, décor, laminates, PCB printing, functional fluids and additive manufacturing, Xaar Nitrox enables manufacturers to print at high speed while maintaining excellent quality and reliability. Its combination of TF Technology, AcuChp Technology, High Laydown Technology, Ultra High Viscosity Technology, Sure Flow, XaarDOT and XaarGuard makes it a flexible platform for a wide range of industrial inkjet applications.
Is the Xaar Nitrox right for you?
The Xaar Nitrox is ideal if you need to
The challenge
Industrial inkjet needs to deliver speed, quality and versatility at the same time
Industrial manufacturers increasingly need digital printing systems that can do more than print standard inks onto standard substrates. They need to process more demanding fluids, achieve stronger visual and functional effects, improve productivity and maintain consistent output in challenging production environments.
For OEMs and manufacturers, this creates pressure to balance throughput, image quality, reliability and application flexibility. Conventional printhead technologies can struggle when fluid viscosity, particle loading, orientation, laydown requirement or production speed increases. Xaar Nitrox is designed to remove
those compromises.
How the Xaar Aquinox solves it
Bringing industrial reliability to aqueous printing
High-speed printing | With printing at up to 48kHz, Xaar Nitrox supports demanding industrial applications where productivity and throughput are critical. |
AcuChp Technology | AcuChp Technology and Tuned Actuator Manufacturing improve print uniformity across |
Ultra High Viscosity Technology | Viscosities up to 100cP can be jetted, enabling increased colour gamut, high opacity, special effects and higher molecular weight materials. |
High Laydown Technology | Delivers very high volumes in a single pass for coatings, structuring and applications where greater laydown is required. |
TF Technology recirculation | Xaar TF Technology supports instant prime and start-up, reliability, ease of use and excellent print quality through ink recirculation. |
Sure Flow self-cleaning | Sure Flow can clear and prevent nozzle blockages without removing the printhead, helping maximise uptime and productivity. |
Multiple print orientations | Xaar Nitrox prints reliably in vertical or horizontal modes, or dynamically on a robot arms, giving OEMs more freedom in |
XaarDOT and XaarGuard | XaarDOT provides flexible drop sizes to optimise coverage and print quality, while XaarGuard supports printhead life, uptime and nozzle protection. |
Key benefits of inkjet printing with Xaar Nitrox...
Xaar’s nozzle level piezo printhead ink recirculation technology which transformed industrial inkjet printing
Give you the ability to deposit large quantities of fluid
in each pass
|
Allows you to reliably print fluids around |
Frequently asked questions...
What is the Xaar Nitrox used for?
How does the Xaar Nitrox support décor and surface decoration applications?
The Xaar Nitrox can support décor and surface decoration applications such as ceramic tiles, glass, laminates, product decoration and decorative graphics. It can help manufacturers jet inks, coatings or specialist fluids onto different surfaces where design flexibility, repeatability and production performance are important.
Can the Xaar Nitrox be used for labelling and packaging?
The Xaar Nitrox can be used in labelling and packaging applications where high-speed digital printing, variable information, product decoration or specialist effects are required. It can support production flexibility across labels, packaging materials and product printing, subject to the ink, substrate, print quality and line speed requirements.
How does the Xaar Nitrox support functional fluid printing?
The Xaar Nitrox can support functional fluid printing where inkjet is used to deposit specialist fluids, coatings or materials rather than only graphic inks. This can be relevant in applications such as PCB printing, product functionality, advanced manufacturing and high-value industrial surface treatment.
Can the Xaar Nitrox be used for additive manufacturing and PCB printing?
The Xaar Nitrox can be used for additive manufacturing and PCB printing where precise digital deposition of fluids or materials is required. In these applications, performance depends on the material being jetted, drop control, substrate or build process, waveform development and the wider production system.
Why is the Xaar Nitrox suited to high viscosity applications?
The Xaar Nitrox is designed to support a broad application window and a wide range of fluids, including higher viscosity formulations where compatible with the printhead and process. Xaar’s Ultra High Viscosity Technology helps manufacturers work with fluids and higher molecular weight materials that deliver stronger colours, higher opacity, functional properties, coatings or textured effects across applications such as décor, packaging, functional fluids and advanced manufacturing.
