Xaar Inkjet Development System

Key benefits

A flexible kit for you to test, analyse and develop with inkjet

Containing the inkjet components necessary to build a fully functional prototype system, this kit compromises of your selected choice of Xaar printheads, a mechanical mounting kit, drive electronics, ink supply system, print server and Xaar test fluid.

With this kit, developers can create an inkjet solution ready to evaluate inkjet without needing to redesign critical components yourself which can be complex, involving the interaction of many physical, chemical, mechanical, electrical and software parameters.

This kit is ideal if you’re looking to develop a new manufacturing process, populate a prototype machine, test jetting fluids, develop image quality models and much more. It can be used with a range of analysis tools such as a dropwatcher and plotter to evaluate various factors such as resolution, fluid viscosity and ink recirculation.

A flexible kit for you to test, analyse and develop with inkjet

Reduced time-to-market and rapid production ready solution

Xaar’s Inkjet Development System is a kit with all the inkjet components necessary to build a prototype or evaluation process. Inkjet development can be complex, involving the interaction of many physical, chemical, mechanical, electrical and software parameters.

By providing all the components necessary for a fully-functional system, as well as drive electronics and an ink supply system designed for real world use, Xaar’s Inkjet Development System lets developers create an inkjet solution that can be scaled to production without needing to redesign critical components.

The Xaar Inkjet Development System will help you answer the following questions:

  • What is the jetting behaviour of my fluid?
  • What resolution does my application need?
  • How easily does a Xaar printhead integrate with my current equipment?
  • What image quality can I achieve with a Xaar printhead?
  • I want to test and develop for my own datapath, is it possible with the Inkjet Development System?
  • How does my fluid interact with my substrate?



Download the datasheet for further information or contact us to find out more.

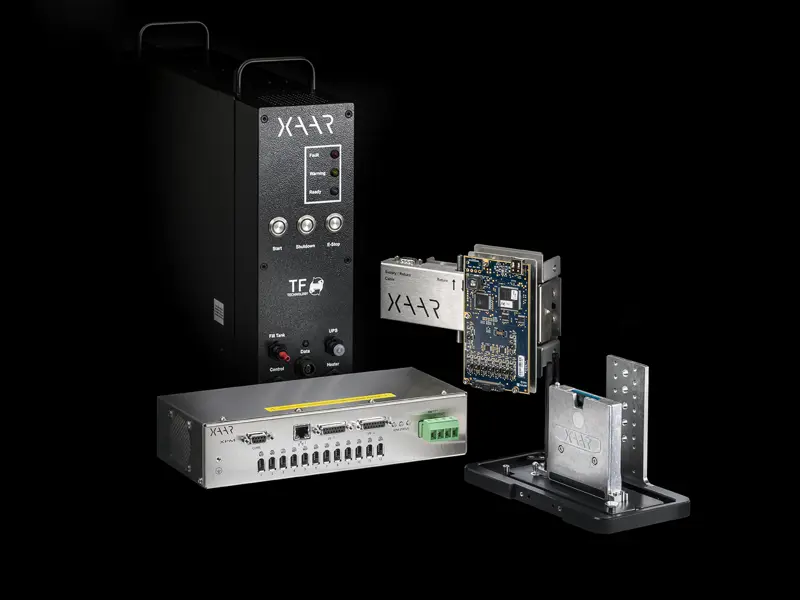

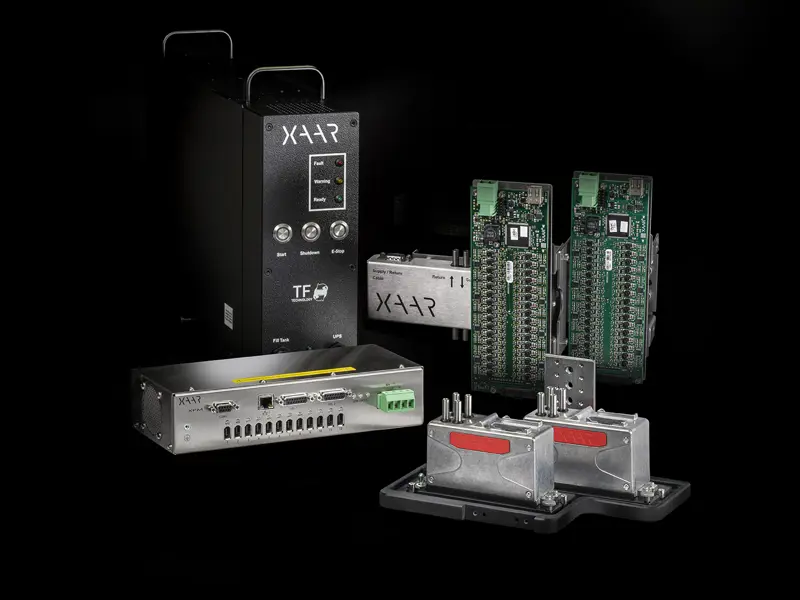

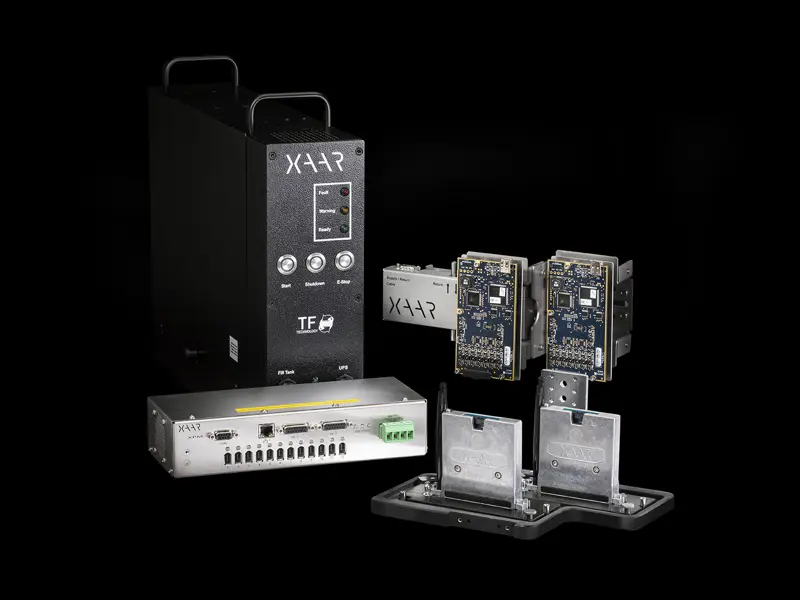

Included

  • Printheads, choose between Xaar Aquinox, Xaar Nitrox, Xaar 2002, Xaar 501 and Xaar 502 (typically 1 or 4 + different drop sizes are available, depending on the application requirements)
  • Mechanical Mounting Kit (printhead mount for all TF Technology enable/ImagineX printheads (1 printhead, XY adjustment), HPC mount, Hydra manifold mount)
  • Drive Electronics (Xaar Print Manager (XPM) & Head Personality Card (HPC) or 3rd party partner)
  • Ink Supply System (Xaar Hydra or Megnajet IDS)
  • Xaar Print Manager software (XPM Suite)
  • Xaar Test Fluid

Not included

  • Graphical User Interface (GUI)
  • Workflow
  • RIP
  • Curing
  • Encoder
  • Product detect
  • Computer
