Xaar Hydra

Advanced fluid control for dependable industrial printing

Why choose Xaar Hydra?

Achieve consistent print quality

Independent control of meniscus pressure, differential pressure and fluid temperature ensures stable printhead operation and repeatable print performance.

Reduce development effort

Hydra combines proven fluid management hardware, software and control architecture into a complete solution that reduces engineering complexity and accelerates machine development.

Maximise production uptime

Integrated safety systems automatically protect printers from leaks, blockages and uncontrolled shutdown events, helping reduce downtime and maintenance intervention.

Operate with confidence

Whether used standalone or connected to a PC, Hydra provides intuitive monitoring and control of critical printing parameters.

Precise control for maximum printhead performance

The Xaar Hydra Fluid Management System provides advanced pressure, flow and temperature control for Xaar recirculating printheads. Designed for demanding industrial systems, Hydra delivers exceptional process stability, helping machine builders achieve reliable print quality, maximum uptime and faster machine development.

Key benefits...

Independent pressure control

Precise control of nozzle meniscus pressure and differential pressure supports stable jetting performance.

Accurate temperature management

Fluid temperature control to ±0.5°C enables support for a wide range of jetting viscosities.

Integrated safety systems

Automatic shutdown capability protects printheads and equipment during fault conditions.

Flexible operation

Run as a standalone system or monitor and control through a PC interface.

Full Xaar compatibility

Supports Xaar Nitrox, Aquinox, 50X and other recirculating printheads across multiple industrial applications.

Ideal applications

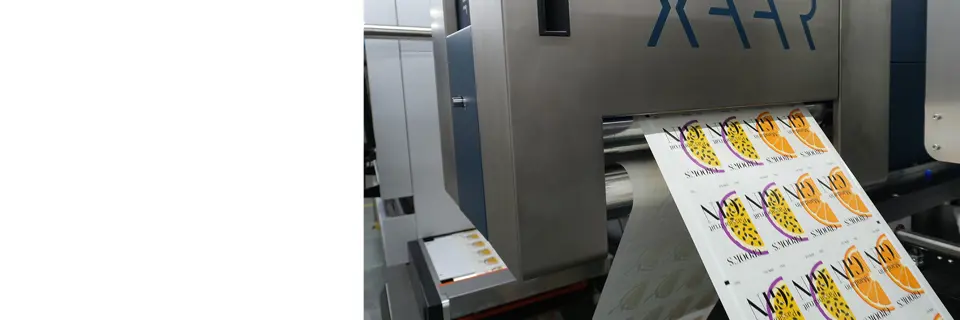

Industrial single-pass printing

Scanning systems

High laydown applications

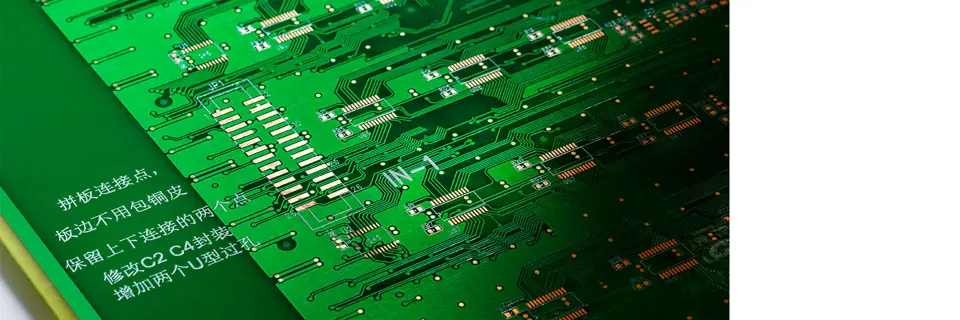

Advanced manufacturing

Packaging and labelling

Graphics and décor printing

Related Resources

View All

Related Products

View all

Want to find out more?

Please fill in this form and a Xaar representative will get back to you.

2D data matrix coding
Brand graphics and logos
Expiry date, traceability and batch codes
Primary and secondary packaging, outer case bar-coding
QR codes

Other Applications:
This printhead family can also be used to print fluids used in the Advanced Manufacturing and 3D market sectors. The piezo inkjet technology used in these printheads is capable of printing fluids with a range of viscosity, reactivity and conductivity. Xaar can support you in choosing the right printhead for the fluid type and for the application vs. the performance specification and price.

Physical attributes	Xaar 502 GS15 S180	Xaar 502 GS15 S360
Active nozzles	500	500
Print swathe width (mm)	70.5	70.5
Number of rows	1	1
Nozzle pitch (µm)	141.1	141.1
Nozzle density (nozzles per inch)	180	180
Nozzle stagger (µm)	47	23.5
Nozzle guard	WFG	WFG
Printhead weight (dry) (g)	208	208
Ink type	Solvent	Solvent
Drop volume* (pL)	15 to 70	15 to 40
Drop velocity* (m/s)	5	5
Number of grey levels*	6	4
Typical firing frequency* (kHz)	7	9.5
Dimensions (WxDxH) (mm)	104 x 17 x 113	104 x 17 x 113

* Dependent on ink used and system integration
